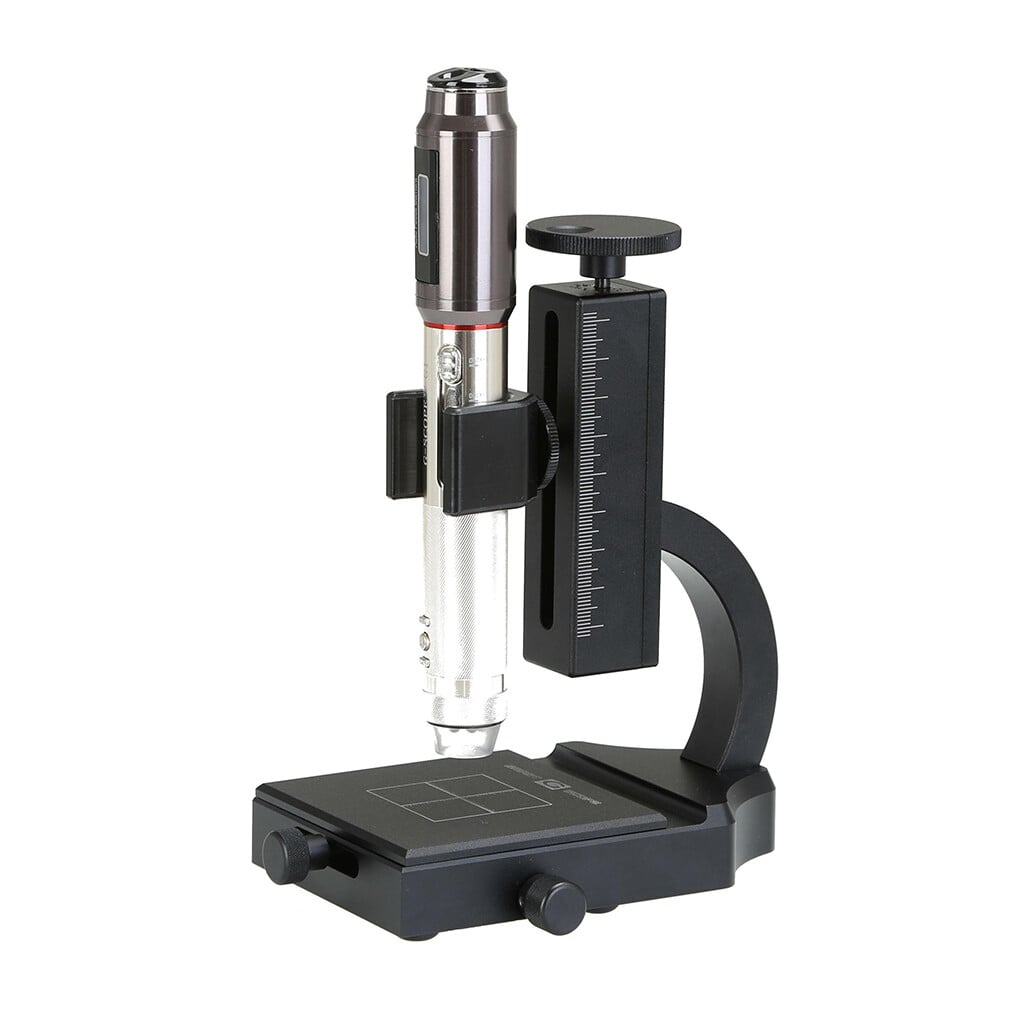

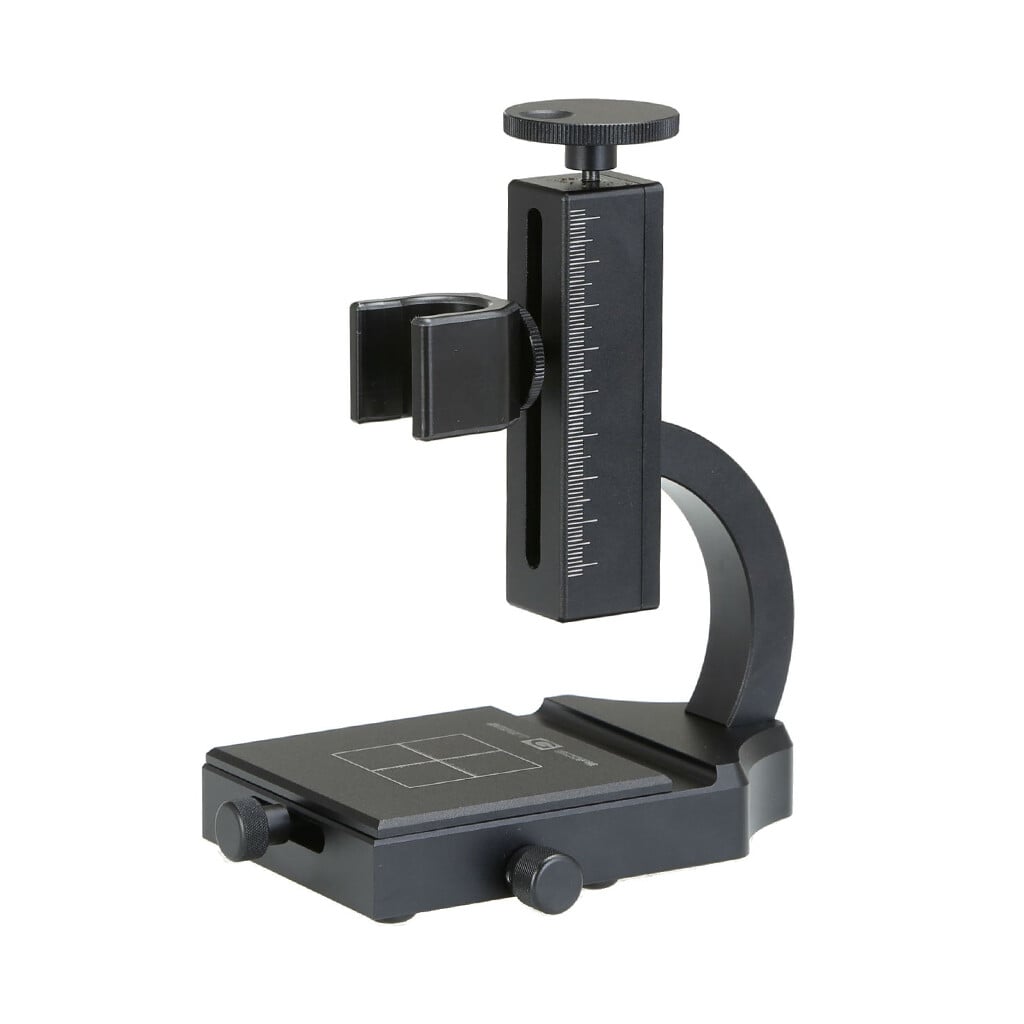

SGS-H100 · High-precision stand

The SGS-H100 High-Precision Stand is a robust, professional-grade fixture designed for applications where accurate and repeatable sample positioning is essential. Featuring a precision X/Y stage with screw-driven movement, it enables controlled micro-adjustments for detailed inspection tasks.

Built with a high-rigidity metal structure, the SGS-H100 provides exceptional stability, making it ideal for still image capture, video recording, and repetitive inspection workflows.

Key features

• High-precision stand with integrated X/Y stage

• Smooth screw-driven X/Y movement for fine positioning

• Fine vertical adjustment for optimal focus control

• Stage with reference markings for repeatable positioning

• High mechanical stability for vibration-free imaging

• Designed for professional and industrial environments

Typical applications

• Electronics and PCB inspection

• Small components and assemblies

• Technical samples requiring precise alignment

• Repetitive inspection and documentation tasks

• Laboratory, industrial, and quality-control workflows

Technical specifications

Type
High-precision stand with XY stage

Movement
Screw-driven X/Y displacement with fine vertical adjustment

Construction
High-rigidity metal structure

Typical use
PCB inspection, electronic components, and technical samples

Why choose the SGS-H100?

The SGS-H100 is the ideal accessory when inspection accuracy matters. Its stable construction and precise mechanical control allow professionals to work efficiently, consistently, and with confidence—especially in tasks where repeatability and image stability are critical.
